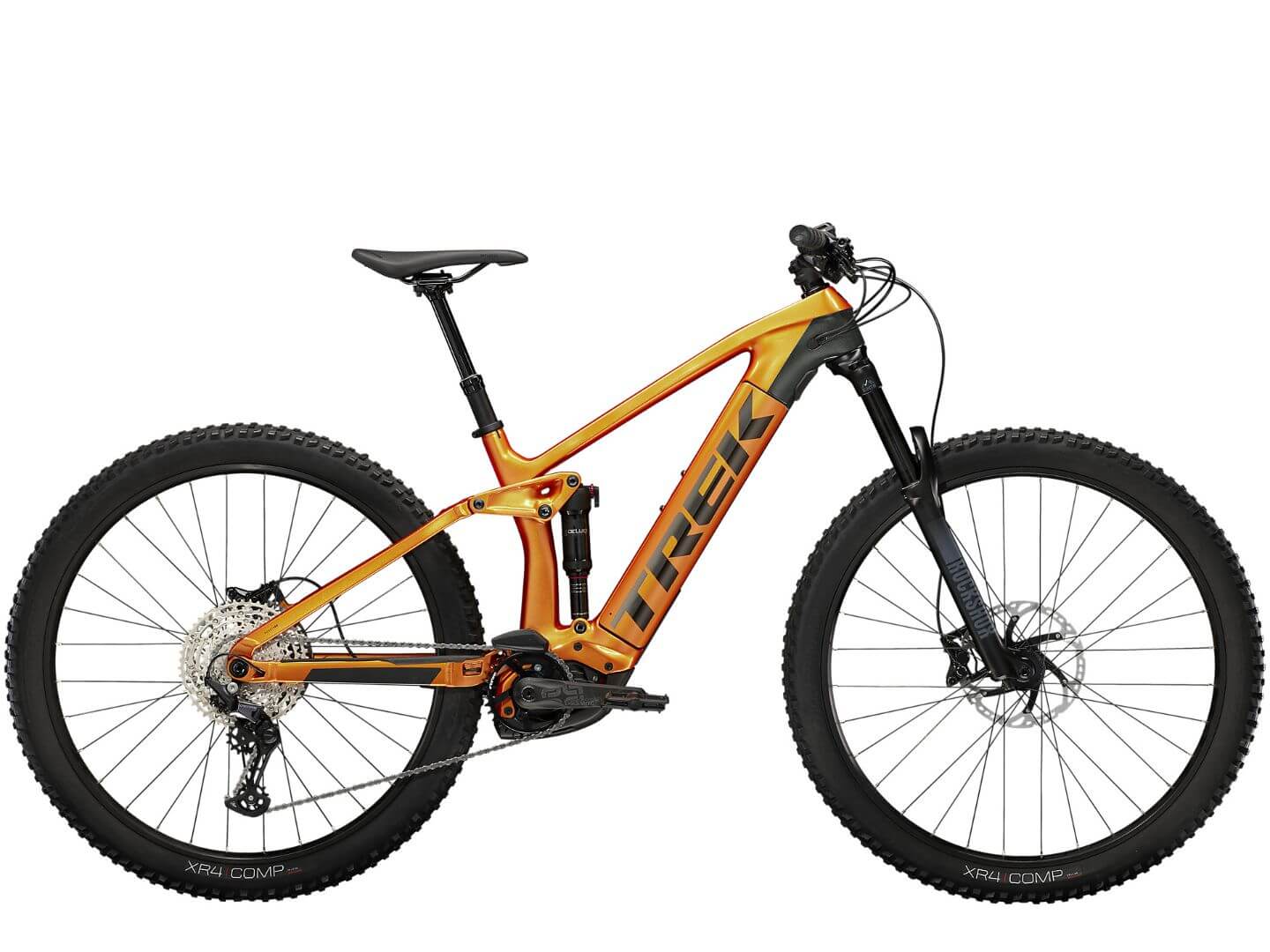

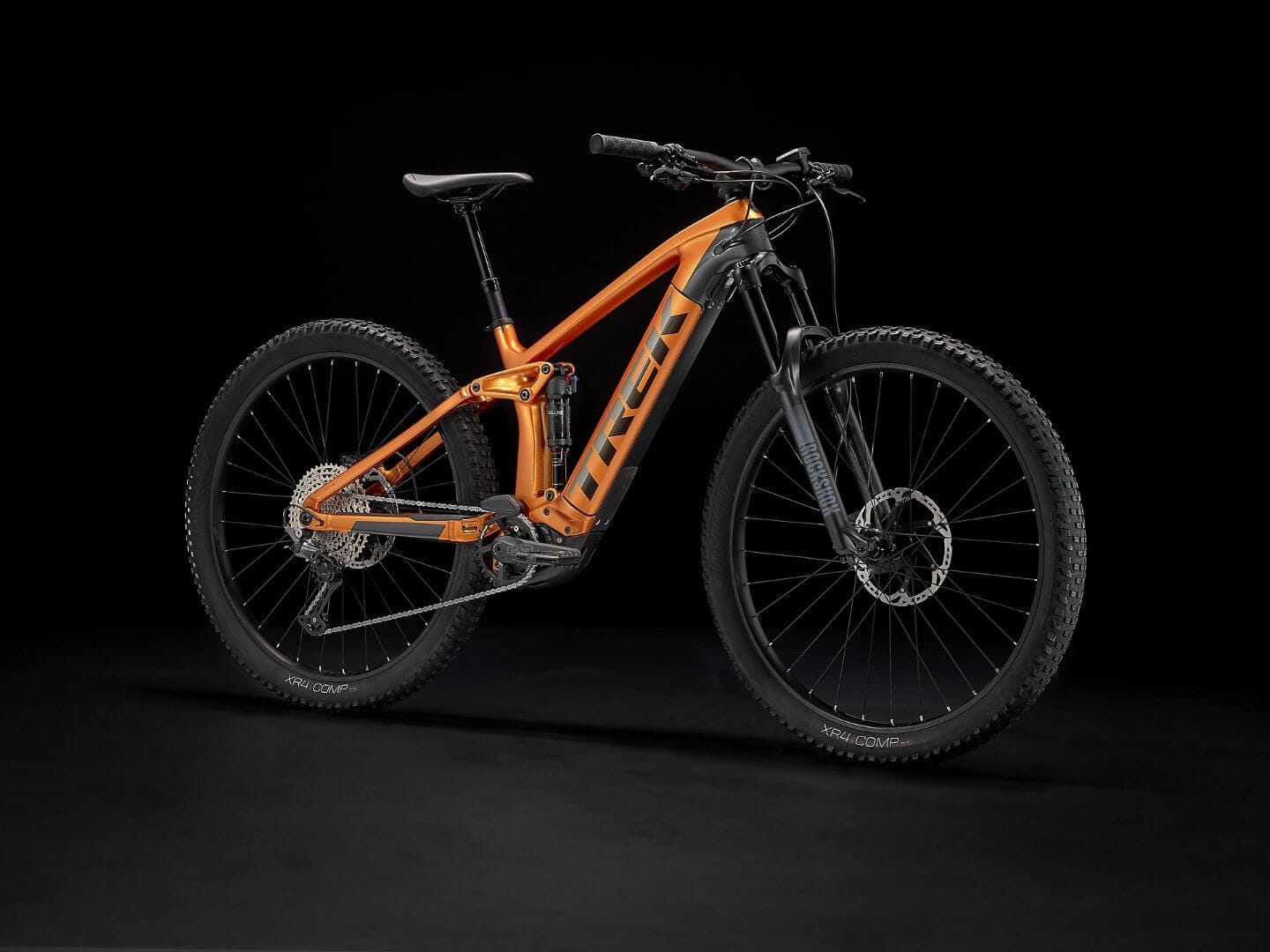

Trek Rail 9.5 2022-23

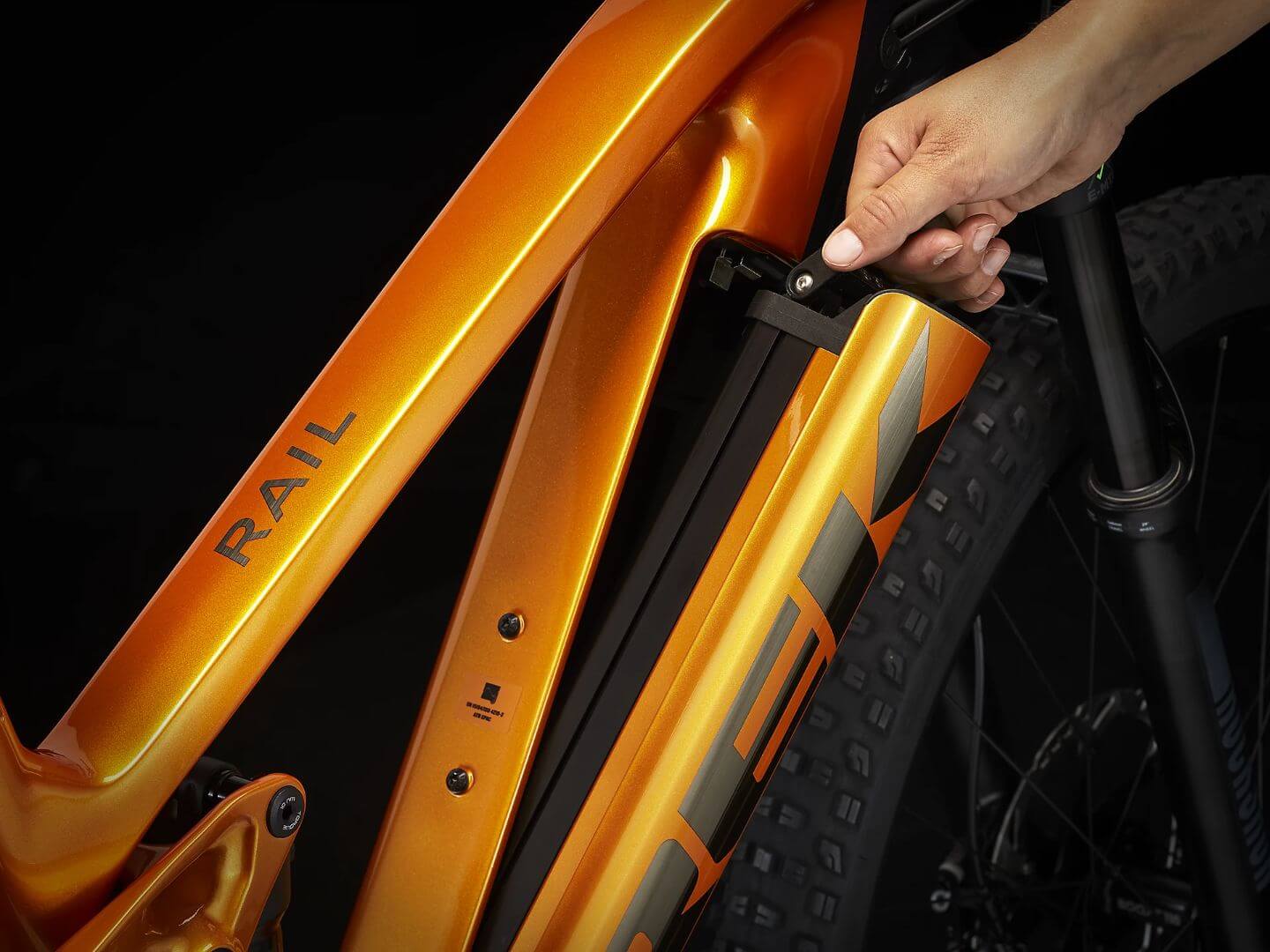

OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel

RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel

RockShox Deluxe Select+, 230×57.5 mm

170mm (580mm axle-to-crown)

Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle

Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle

Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve

Bontrager XR3 Comp, wire bead, 30 tpi, 29×2.40"

Frame: 29×2.60" Fork: See manufacturer

Shimano Deore M6100, 12-speed

Shimano Deore M6100, long cage

E*thirteen E*spec Plus, 34T, 165 mm length

34T

Shimano Deore M6100, 10-51, 12-speed

Shimano Deore M6100

VP-536 nylon platform

Bontrager Arvada, steel rails, 138 mm width

TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length

גודל: S

Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length

גודל: M, L, XL

TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length

גודל: M, L, XL

Bontrager Line Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length

Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Bontrager XR Trail Comp, nylon lock-on

Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length

Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper

Shimano RT76, 6-bolt, 203 mm

Bosch PowerTube 625

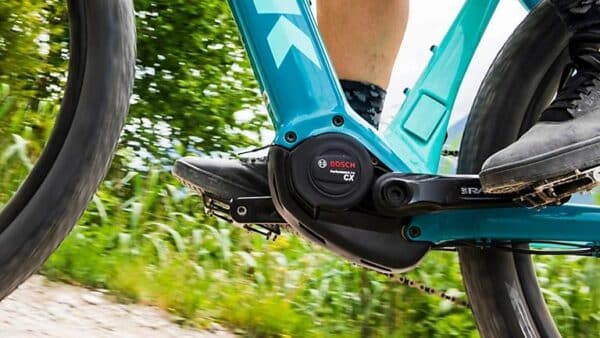

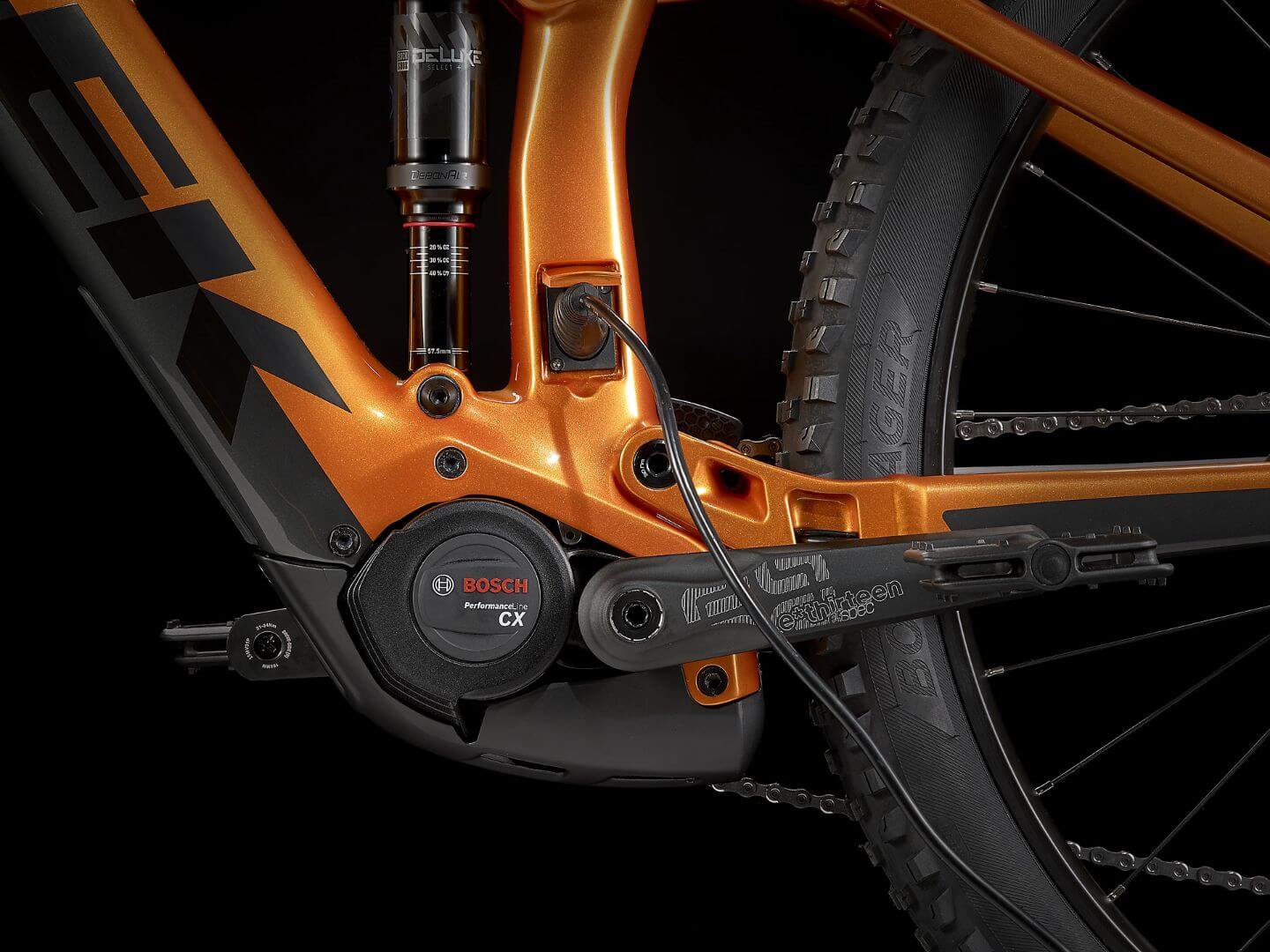

Bosch Performance CX

Bosch Purion
