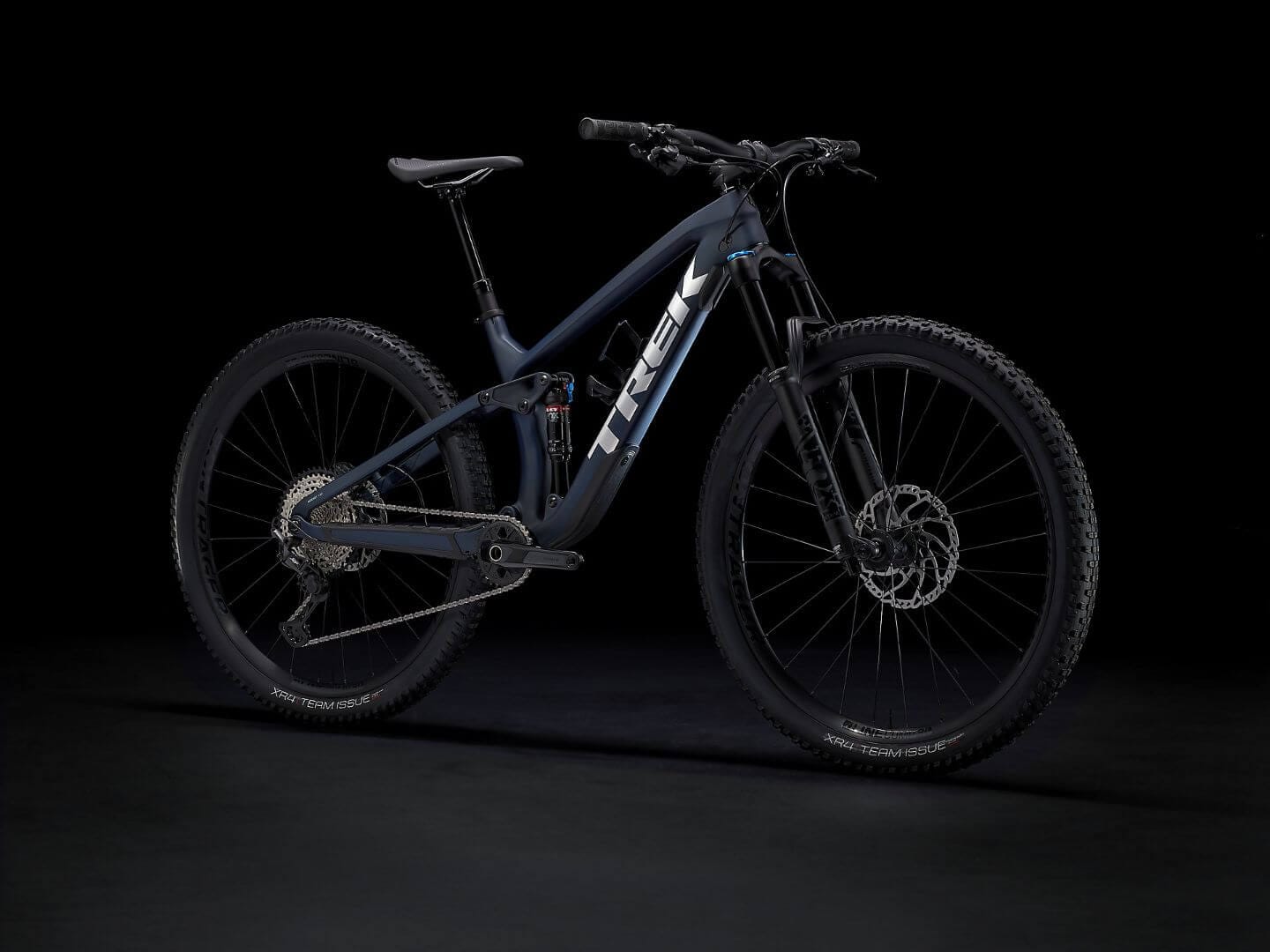

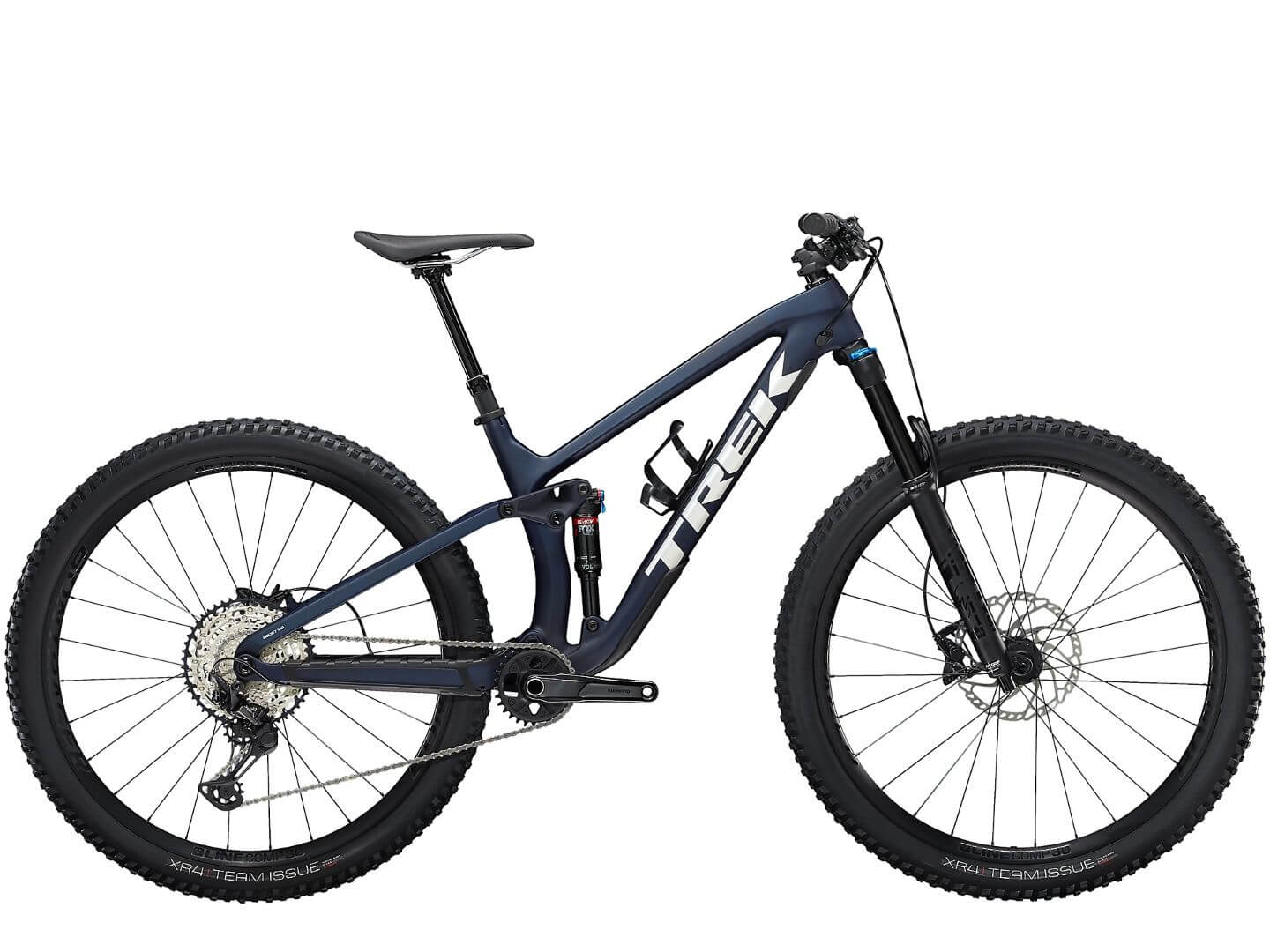

Trek Fuel EX 9.7 Gen 5

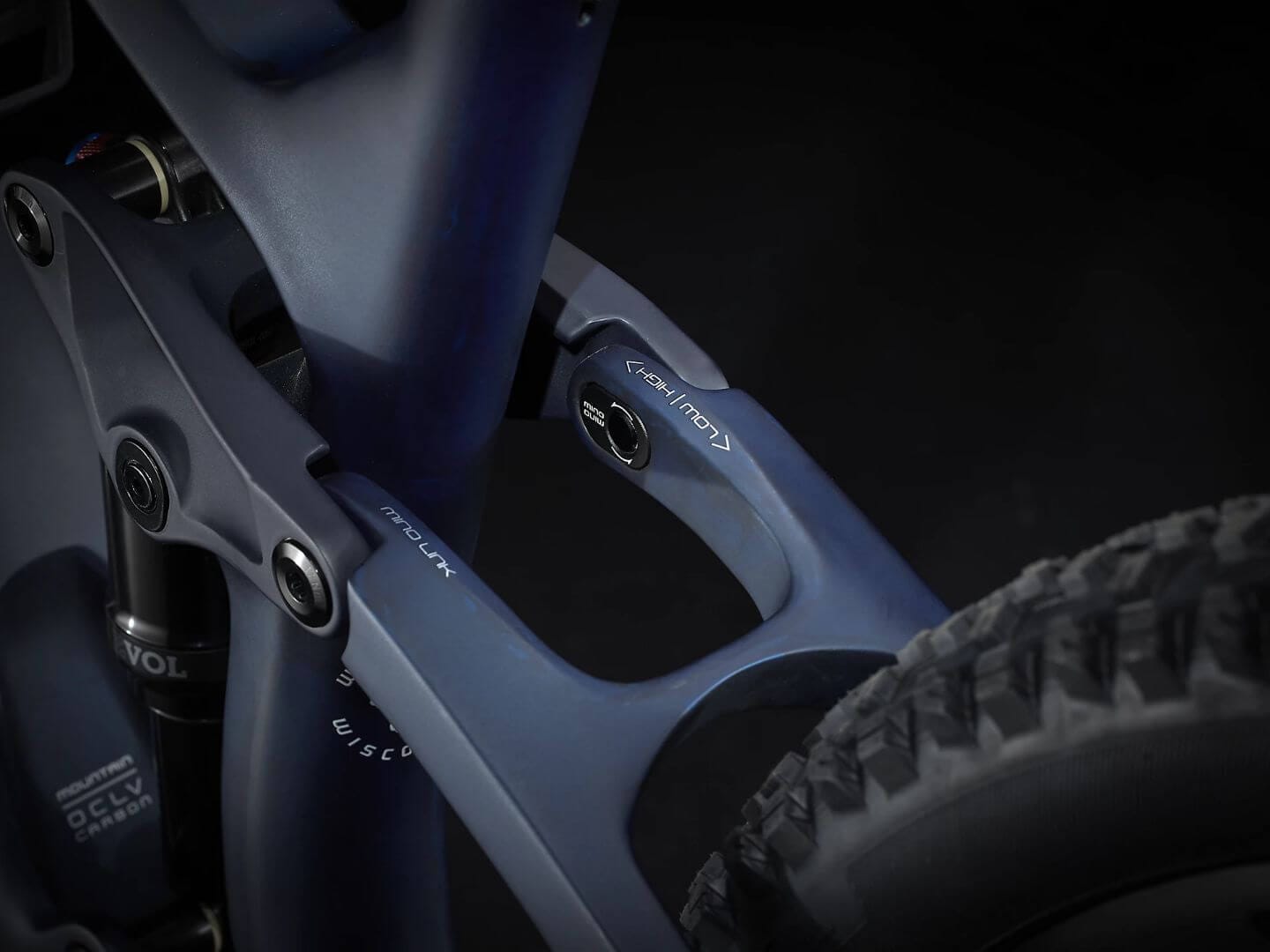

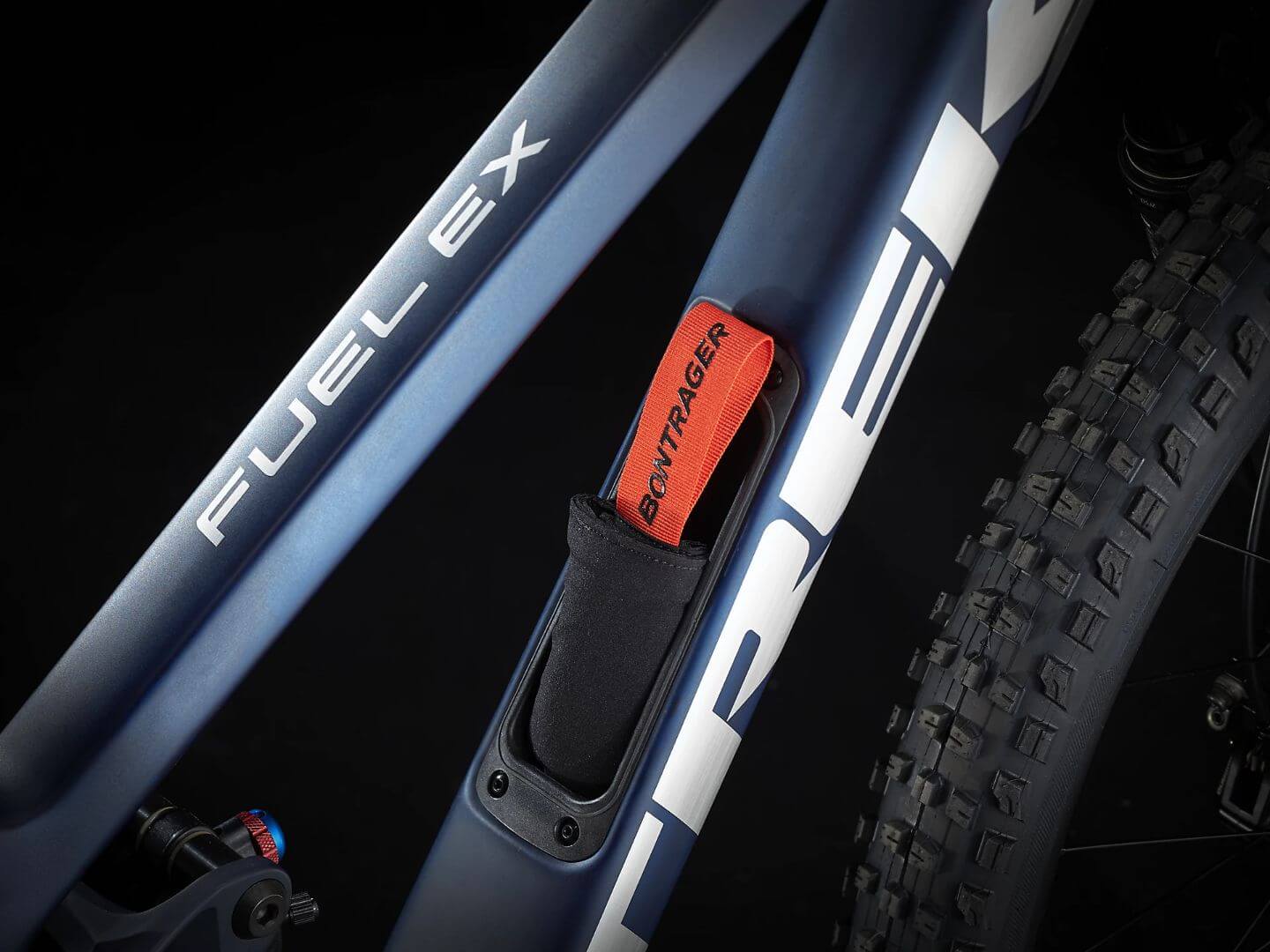

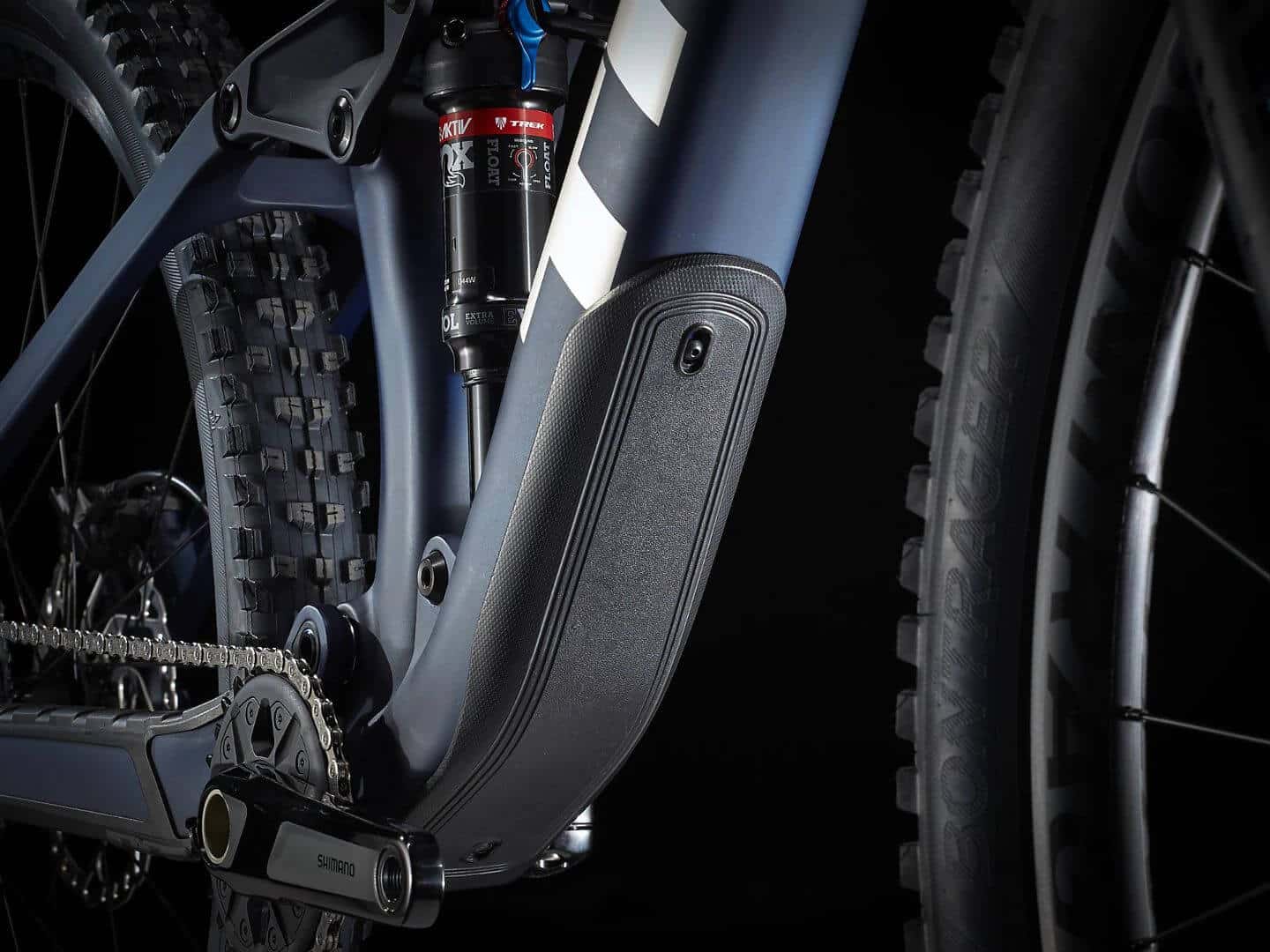

OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel

Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel

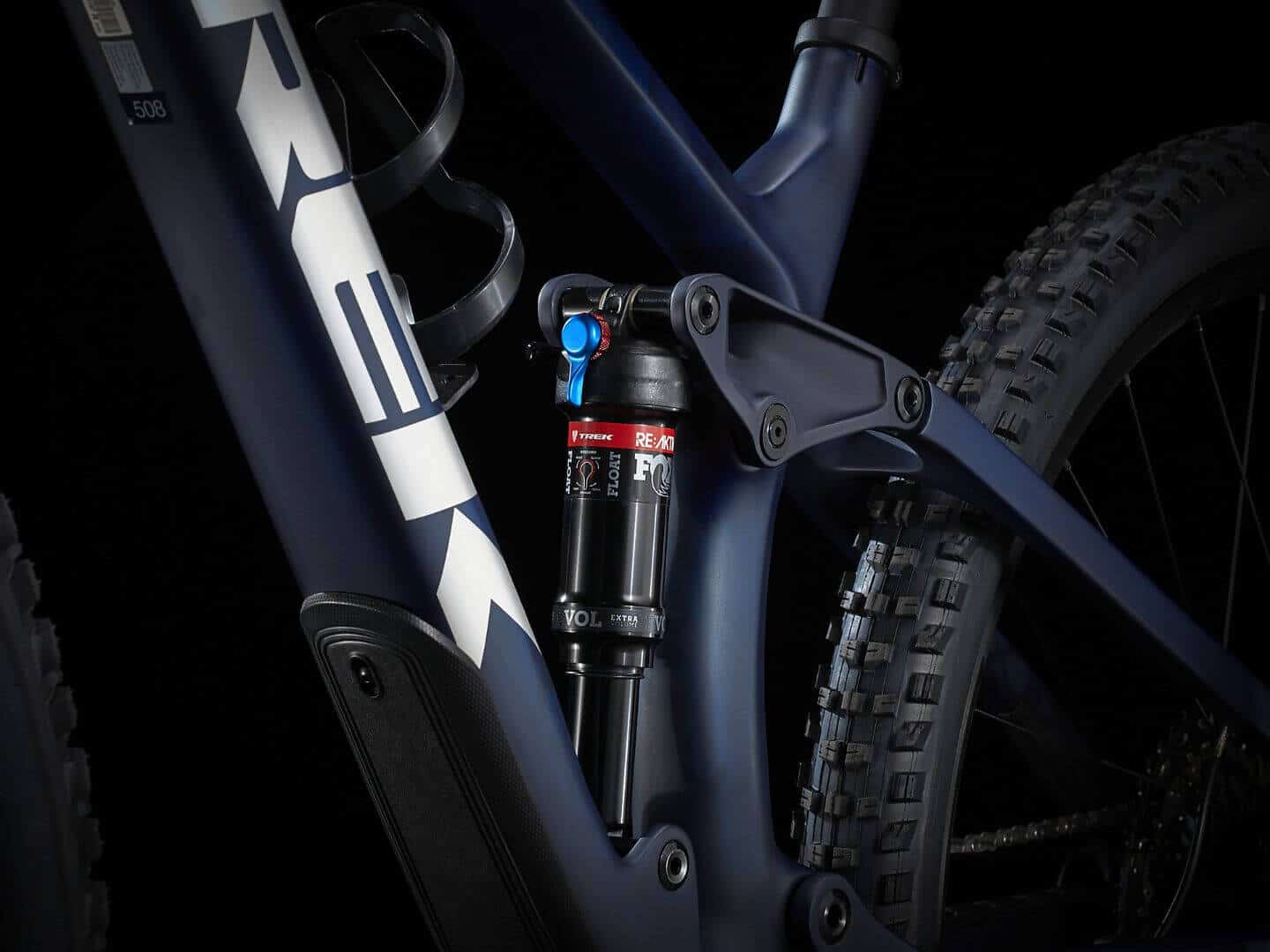

Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210mm x 55mm

150mm (561mm axle-to-crown)

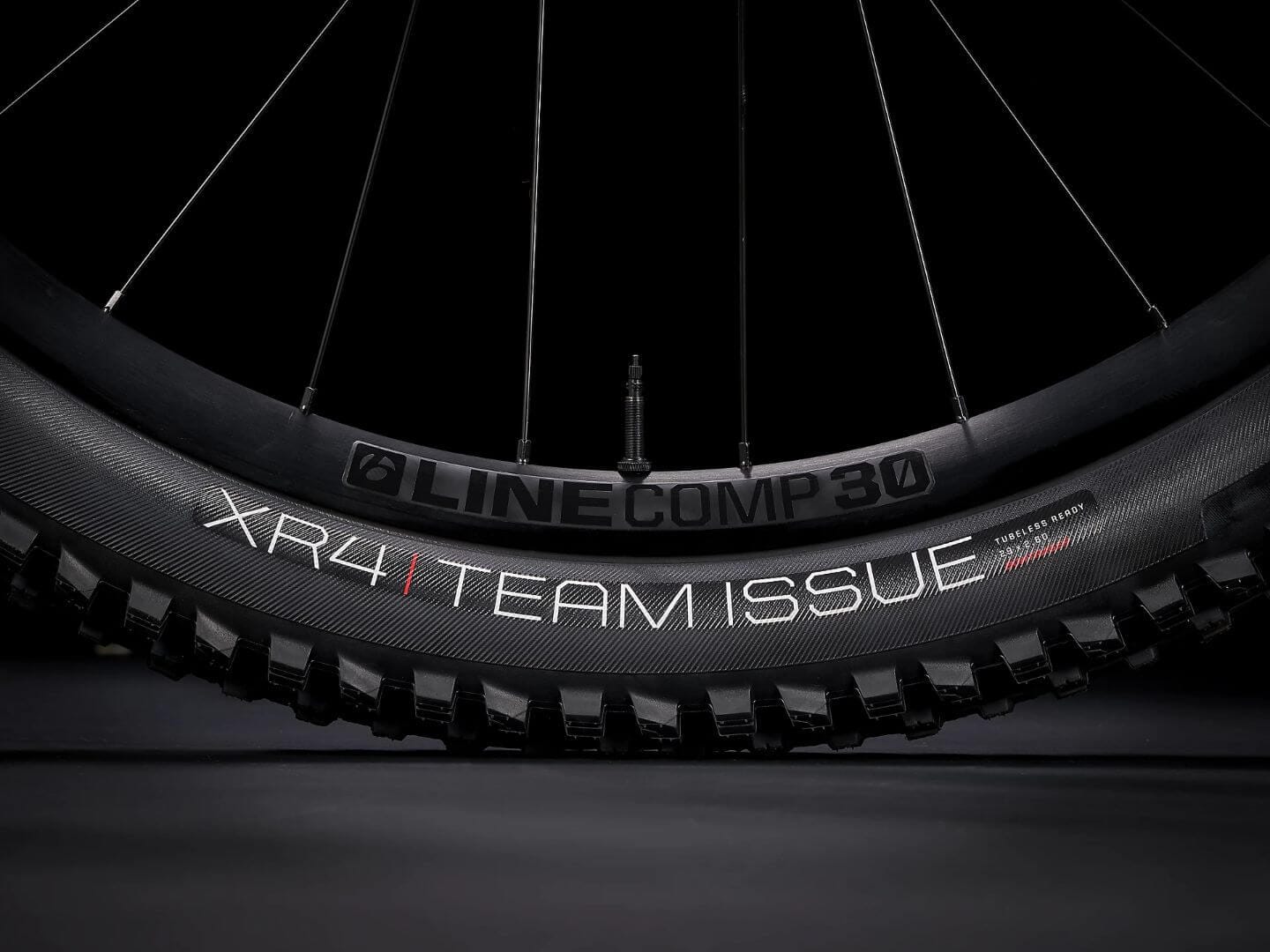

Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle

Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29×2.50"

Bontrager TLR

Frame: 29×2.60" Fork: See manufacturer

Shimano SLX M7100, 12 speed

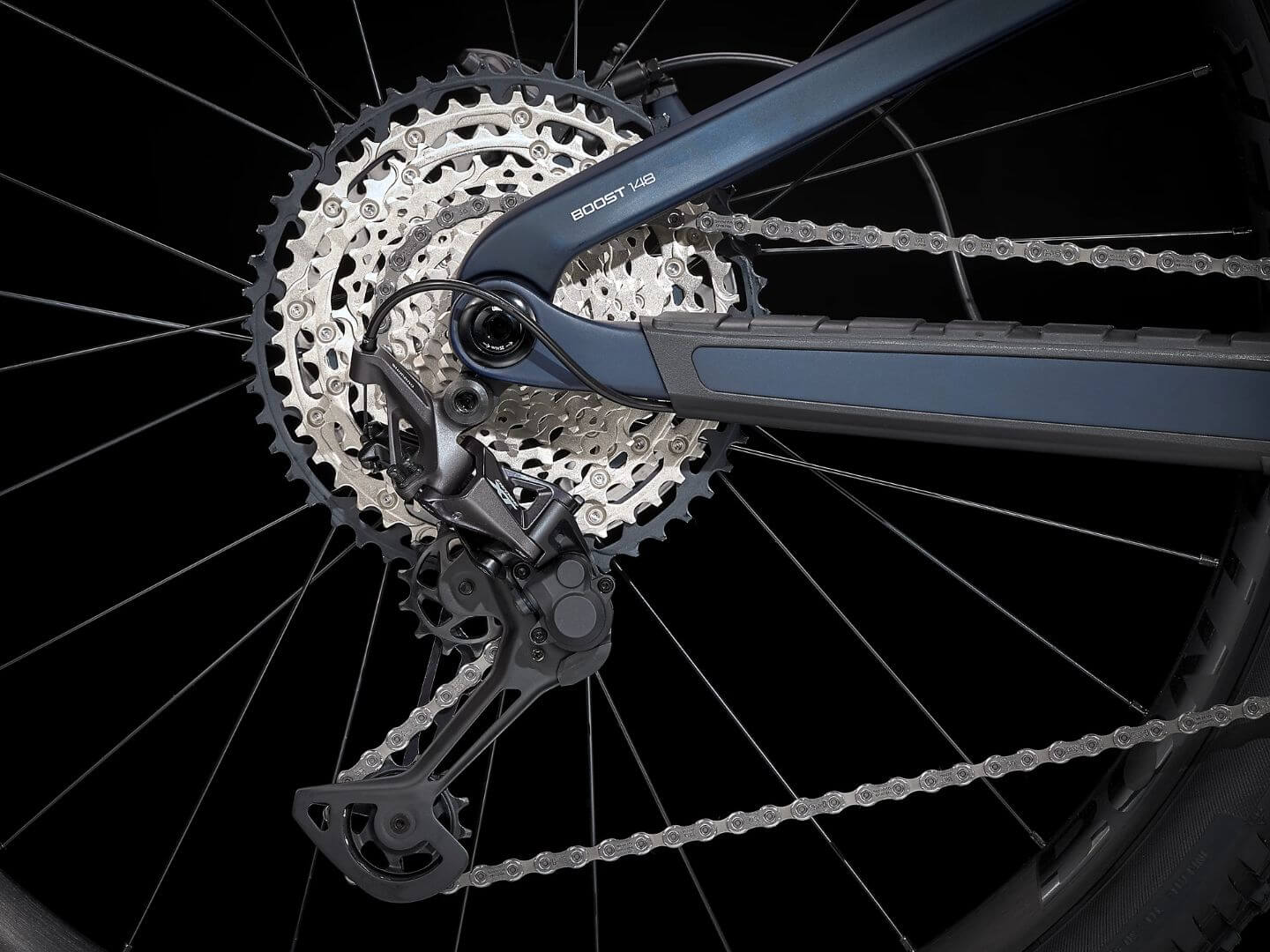

Shimano XT M8100, long cage, 51T max cog

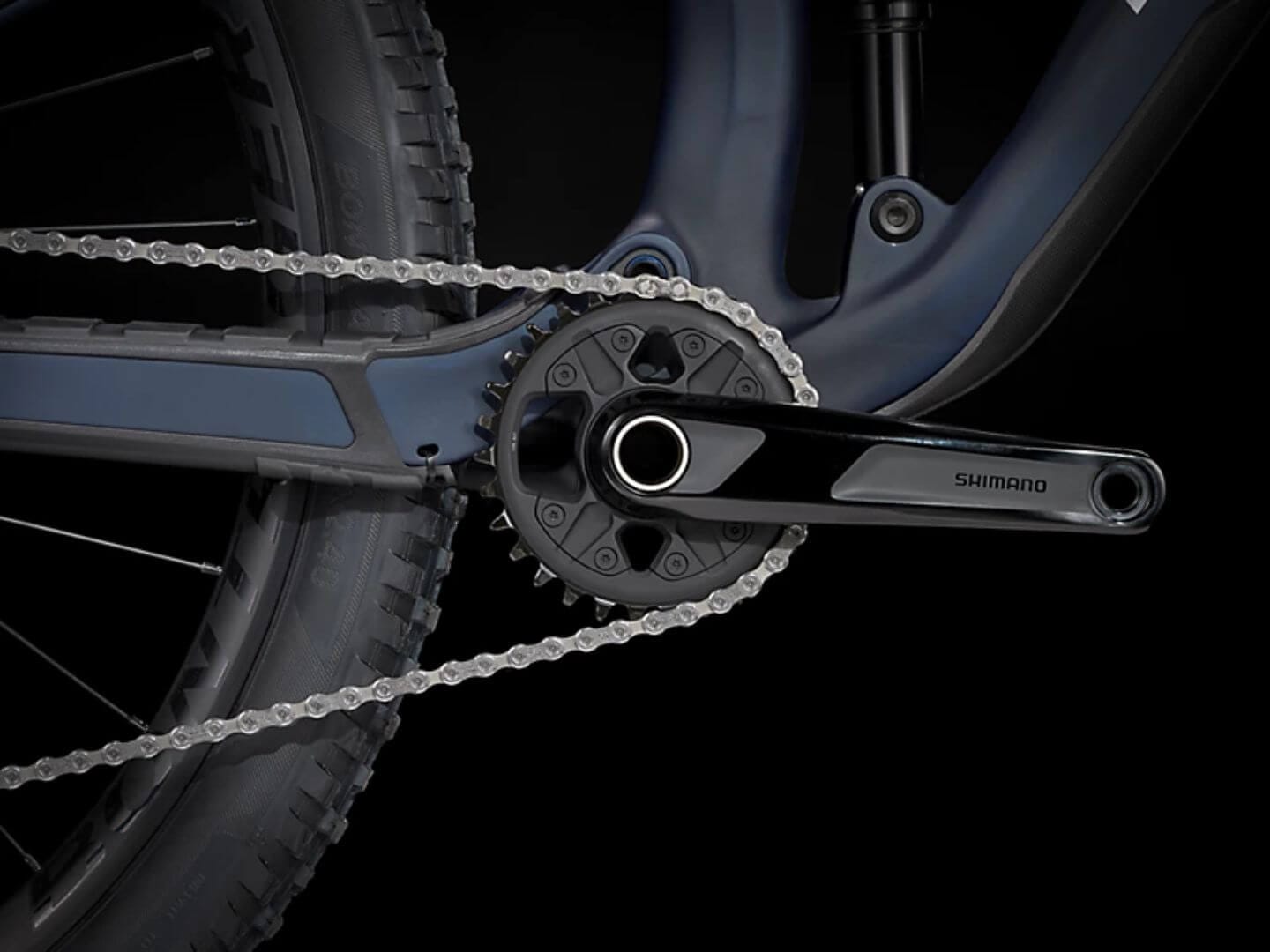

Shimano MT611, 30T steel ring, alloy spider, Boost (52mm chainline), 170mm length

גודל: XL

Shimano MT611, 30T steel ring, alloy spider, Boost (52mm chainline), 175mm length

34T

Shimano MT500, 92mm, PressFit

Shimano SLX M7100, 10-51, 12 speed

Shimano SLX M7100, 12 speed

Bontrager Arvada, hollow chromoly rails, 138mm width

Bontrager Line Dropper, 100mm travel, internal routing, 31.6mm, 345mm length

גודל: M , ML , L , XL

Bontrager Line Dropper, 150mm travel, internal routing, 31.6mm, 440mm length

Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width

גודל: M , ML , L , XL

Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width

Bontrager XR Trail Elite, nylon lock-on

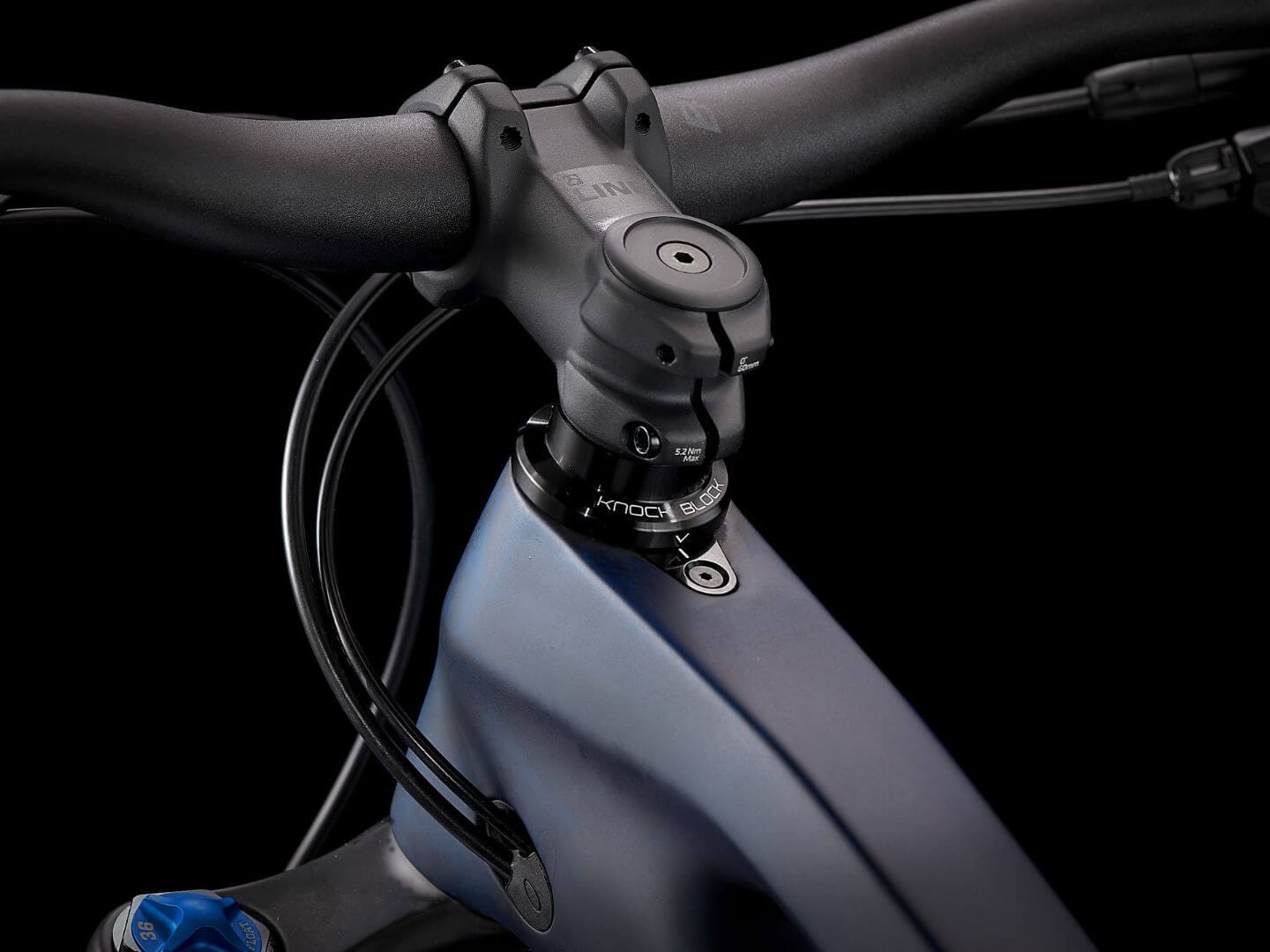

Bontrager Elite, 35mm, 0 degree, 35mm length

גודל: M , ML , L , XL

Bontrager Elite, 35mm, 0 degree, 45mm length

Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom

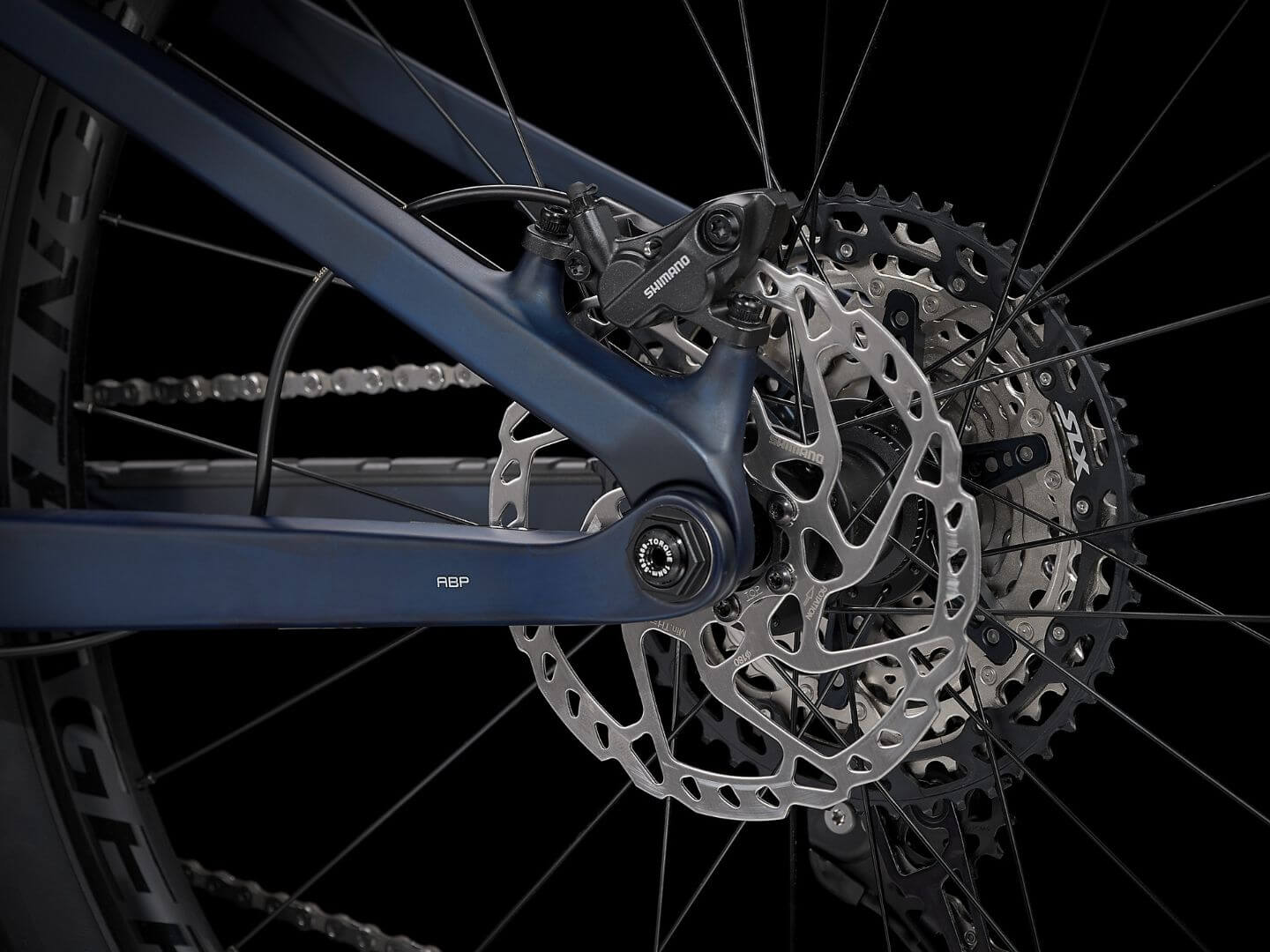

Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper

Shimano RT66, 6-bolt, 203mm, Size SM 180 mm

גודל: אחורי

Shimano RT66, 6-bolt, 180mm
